Rasa Tiny Home
20 x 8 FT
tiny home on wheels
4-6 people
sleeps up to 4-6 people
$45,000
starting price
design
The Rasa is a 5-star Airbnb model designed to maximize profit and return on investment for short term rental hosts.
After 3 years of hosting tiny homes on Airbnb, and 16 different Airbnb listings, we developed Rasa. The layout features two queen sized sleeping lofts along with space for a couch on the main level, making it possible to sleep 4-6 guests. A simple, minimalist design makes for quick and easy turn-over cleaning, keeping expenses low. The building materials used are designed and tested for rigorous daily use, ensuring minimal maintenance and upkeep for the host.
key details
HOUSE LENGTH (EXTERIOR)
20’
EXTERIOR WIDTH
8’
EXTERIOR HEIGHT
13’6”
TOTAL SQ FT
224
LOFT DIMENSIONS
7’x8’ and 7’x5’
LOFT HEIGHT (at low side)
36”
HEIGHT UNDER LOFTS
6’4”
SLEEPS
4-6
specs
The 20 ft Rasa is a complete package with a well-equipped kitchen, built-in barstool seating (or additional kitchen cabinets if storage is more precious than seating), two spacious sleeping lofts, a roomy bathroom with shower stall, vanity, flush toilet, and storage, and an open living space for lounging.
Overview
20 ft tiny home on wheels. Certified RV by NOAH.
Dimensions
Build Platform
Bumper pull with 5,000 lb each double axles. Hand built chassis, thick gauge steel, trailer brakes, highway lighting, DOT approved.
Roof
Gulf-Rib 29g metal roof. Shed (single-pitch) roofline.
Sheathing
1/2 in OSB with ice&water weather shield
Siding
LP SmartSide painted lap siding with hardi board and batten trim and sealed and stained pine tongue and groove accents (custom colors available).
Power hookup
50 amp hookup for electrical service to home. Exterior outlet.
Water system
Fresh water hose inlet.
Hot water heater
Electric tankless instant hot water heater.
Heat / Cooling
Ductless mini split A/C and heat pump, 12,000 BTU.
Walls
Painted drywall or painted shiplap (paint & stain options available).
Ceiling
Stained pine tongue & groove (paint & stain options available). Option to upgrade to painted shiplap.
Subfloor
2x6 framed R19 insulated subfloor with 3/4” plywood.
Insulation
R13 fiberglass roll insulation in walls. R19 fiberglass roll insulation in floor and ceiling.
Flooring
Pro grade waterproof vinyl in lofts, kitchen, and living space (color options available). Porcelain tile in bathroom.
Doors
Fiberglass door, full glass with built in blinds.
Windows
Vinyl double paned impact resistant windows.
Lighting
Slim profile LED ceiling lights. Exterior light sconce.
Bathroom
36″ x 34″ shower pan with full tile surround. 30” bathroom vanity with engineered marble top. Custom pine swing door. Standard porcelain gravity flush toilet. Connections (vent/outlet) for alternative toilet or composting toilet also available.

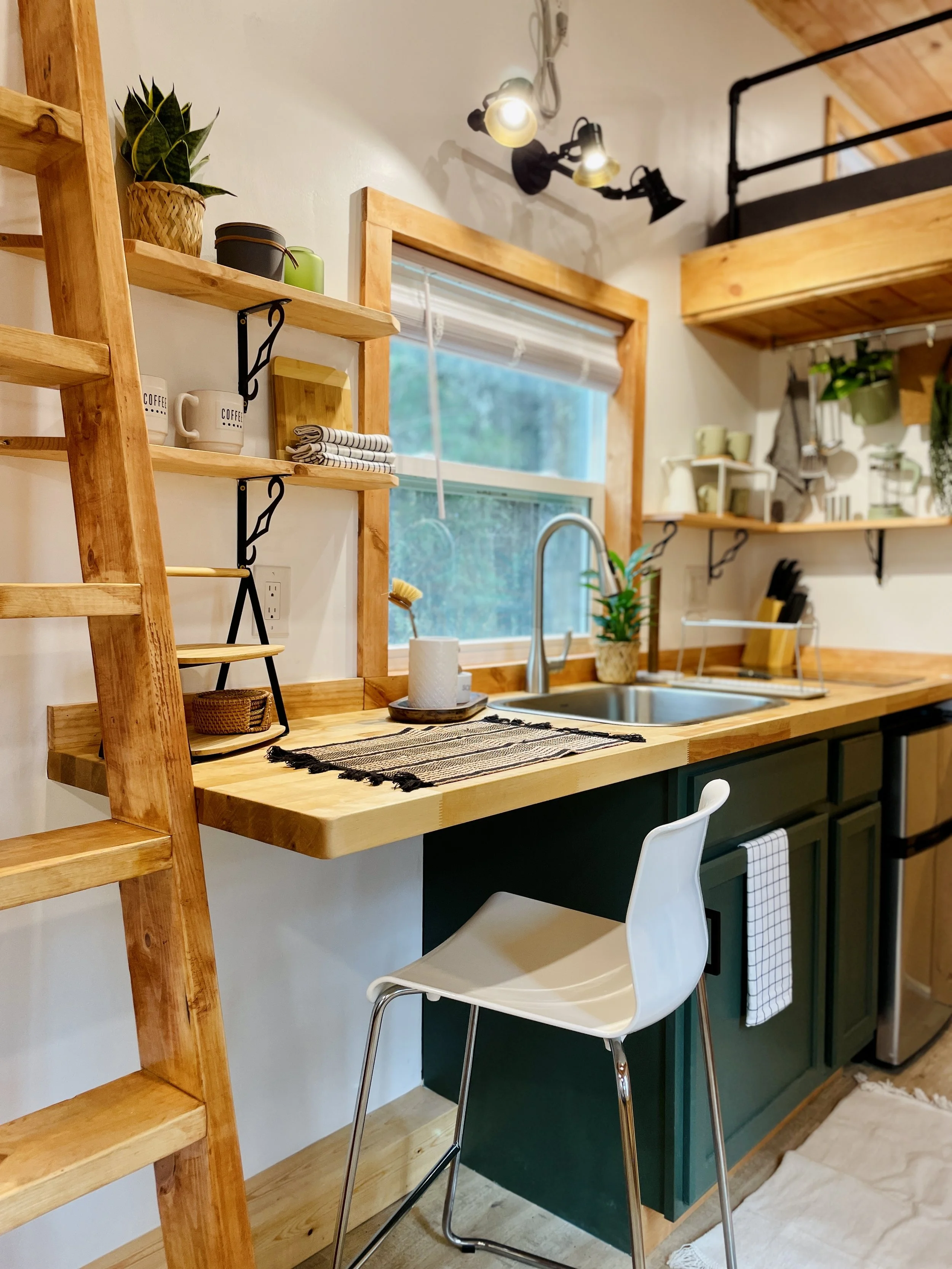

Kitchen
Closed lower cabinets painted; open upper shelving. Butcher block counter with drop-in stainless or composite sink. Brushed nickel, oil rubbed bronze, or black faucet and cabinet hardware (other finish options available).
Appliances
2-burner electric cooktop infrared stove flush mount with butcher block counters. 3.1 cubic foot stainless steel mini fridge with separate freezer compartment. Washer/dryer combo unit is included
Living Area
Open living area for furniture, desk, or bed. 5x7’ floor space.
Loft & Access
7x8’ master loft with open stairs access. 7x5’ second loft with ladder access. Black metal railings.
Warranty
One month limited warranty on workmanship.
Ready to order your Rasa Tiny Home now?
