Goa Tiny Home
24 x 8 FT
tiny home on wheels
4 people
sleeps up to 4-5 people
$65,000
starting price
design
The Goa is your answer to living in a custom built, luxurious feeling home, without the mortgage!
Goa is designed for those that want to go tiny full time! The kitchen is large enough to cook meals for the whole family, coupled by a small table, a spacious living room, a full sized bathroom, and two queen sleeping lofts. Goa also includes a washer/dryer combo unit.
key details
HOUSE LENGTH (EXTERIOR)
24’
EXTERIOR WIDTH
8’
EXTERIOR HEIGHT
13’6”
TOTAL SQ FT
252
LOFT DIMENSIONS
7’x8’ and 7’x5’
LOFT HEIGHT (at low side)
36”
HEIGHT UNDER LOFTS
6’4”
SLEEPS
4-5
specs

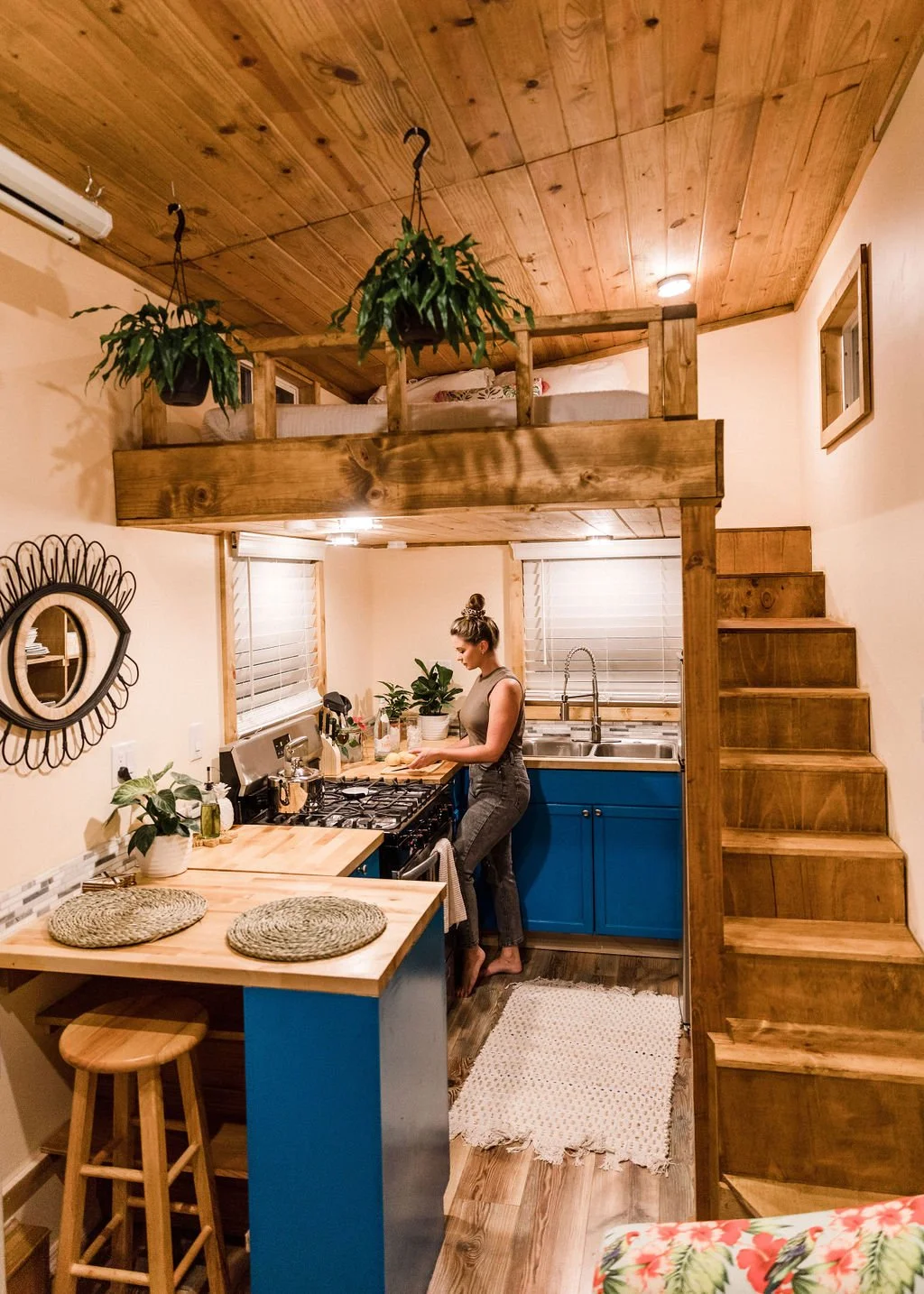

The 24 ft Goa is a spacious design with a luxurious kitchen as the main feature. The kitchen has ample built in storage, a full size range, and storage under the stairs that lead to the loft. With two spacious sleeping lofts, a roomy bathroom, and cozy living room, Goa makes a great small home for anyone looking to go tiny.
Overview
24 ft tiny home on wheels. Certified RV by NOAH. Can be built to satisfy IRC Appendix AQ (by request).
Dimensions
Build Platform
Bumper pull with 7,500 lb each double axles. Hand built chassis, thick gauge steel, trailer brakes, highway lighting, DOT approved.
Roof
Gulf-Rib 29g metal roof. Shed (single-pitch) roofline.
Sheathing
1/2 in OSB with ice&water weather shield
Siding
LP SmartSide painted lap siding with hardi board and batten trim and sealed and stained pine tongue and groove accents (custom colors available).
Power hookup
50 amp hookup for electrical service to home. Exterior outlet.
Water system
Fresh water hose inlet.
Hot water heater
Electric tankless instant hot water heater.
Heat / Cooling
Ductless mini split A/C and heat pump, 12,000 BTU.
Walls
Painted drywall or painted shiplap (paint & stain options available).
Ceiling
Stained pine tongue & groove (paint & stain options available). Option to upgrade to painted shiplap.
Subfloor
2x6 framed R19 insulated subfloor with 3/4” plywood.
Insulation
R13 fiberglass roll insulation in walls. R19 fiberglass roll insulation in floor and ceiling.
Flooring
Pro grade waterproof vinyl in lofts, kitchen, and living space (color options available). Porcelain tile in bathroom.
Doors
Fiberglass door, full glass with built in blinds.
Windows
Vinyl double paned impact resistant windows.
Lighting
Slim profile LED ceiling lights. Exterior light sconce.
Bathroom
Option for 36″ x 34″ shower pan or full size tub, both with full tile surround. 30” bathroom vanity with engineered marble top. Custom pine swing door. Standard porcelain gravity flush toilet. Connections (vent/outlet) for alternative toilet or composting toilet also available.
Kitchen
Closed lower cabinets painted; open upper shelving. Butcher block counter with drop-in stainless or composite sink. Brushed nickel, oil rubbed bronze, or black faucet and cabinet hardware (other finish options available).
Appliances
Full sized electric range. 7.3 cubic foot stainless steel mini fridge with separate freezer compartment.
Living Area
Open living area for furniture.
Loft & Access
7x8’ master loft with stairs access. 7x8’ second loft with ladder access. Black metal railings.
Warranty
One month limited warranty on workmanship.
